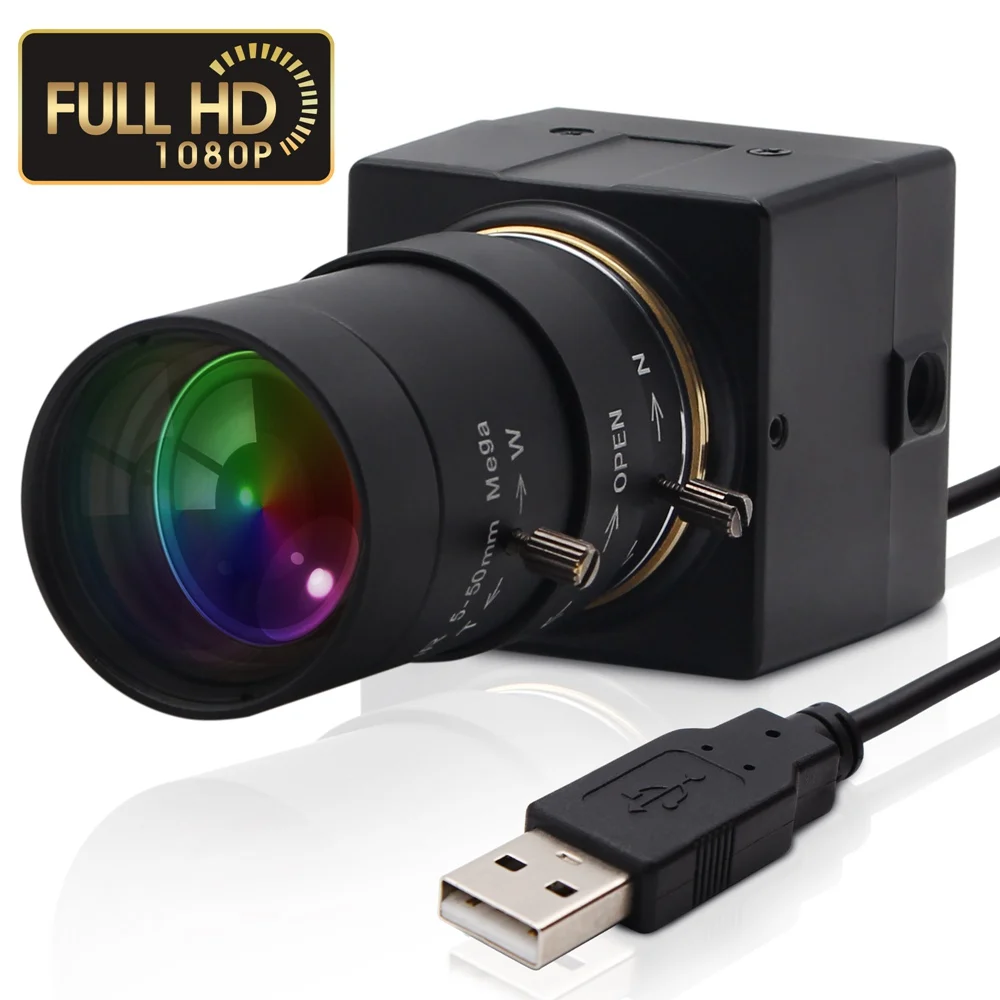

ELP 2MP USB Webcam 5-50mm Varifocal Lens 0.01lux Low Light Full HD 1080P30FPS H.264 Mejpg Industrial Machine USB Camera with UVC
ELP 2MP USB Webcam 5-50mm Varifocal Lens 0.01lux Low Light Full HD 1080P30FPS H.264 Mejpg Industrial Machine USB Camera with UVC - Image 2
ELP 2MP USB Webcam 5-50mm Varifocal Lens 0.01lux Low Light Full HD 1080P30FPS H.264 Mejpg Industrial Machine USB Camera with UVC - Image 3
ELP 2MP USB Webcam 5-50mm Varifocal Lens 0.01lux Low Light Full HD 1080P30FPS H.264 Mejpg Industrial Machine USB Camera with UVC - Image 4
ELP 2MP USB Webcam 5-50mm Varifocal Lens 0.01lux Low Light Full HD 1080P30FPS H.264 Mejpg Industrial Machine USB Camera with UVC - Image 5
ELP 2MP USB Webcam 5-50mm Varifocal Lens 0.01lux Low Light Full HD 1080P30FPS H.264 Mejpg Industrial Machine USB Camera with UVC - Image 6
ELP 2MP USB Webcam 5-50mm Varifocal Lens 0.01lux Low Light Full HD 1080P30FPS H.264 Mejpg Industrial Machine USB Camera with UVC - Image 7
ELP 2MP USB Webcam 5-50mm Varifocal Lens 0.01lux Low Light Full HD 1080P30FPS H.264 Mejpg Industrial Machine USB Camera with UVC - Image 8

ELP 2MP USB Webcam 5-50mm Varifocal Lens 0.01lux Low Light Full HD 1080P30FPS H.264 Mejpg Industrial Machine USB Camera with UVC

Rp1.909.423 – Rp1.957.397
In Stock
Order on WhatsApp
Add to wishlist
  • Delivered today (order Mon-Fri before 12:00, delivery between 17:00 and 22:00)
  • Including shipping costs, sent by Rare Good Store
  • Pick up at a Rare Good Store collection point is possible
  • 30 days to change your mind and free returns
  • Day and night customer service
SKU: 32826686640

Description

  • Hign-concerned Chemical: None
  • Movies File Formats: H.264/MJPEG/YUY2
  • Audio File Formats: with microphone
  • Additional Function: Low Illumination Camera Function
  • Optical Zoom: 10x – 20x
  • Model Number: ELP-USBFHD06H-SFV(5-50)
  • Pixels: 2-3 million
  • Weight: 301g-400g
  • Sensor Size (inches): 1/2.9 inches
  • Sensor Type: CMOS
  • Type: Professional
  • High Definition Support: 1080P (Full-HD)
  • Brand Name: ELP
  • Origin: Mainland China
  • Sensor Size: 1/2.9 inches
  • Use: Professional
  • 2MP FHD Webcam: Low light USB Camera
  • Image sensor: 1/2.9inch IMX322, star light
  • Low illumination: mini 0.01lux
  • Picture Format: H.264/MJPEG/YUY2
  • Frame rate: H.264/MJPEG 1920*1080 30FPS
  • varifocal lens,: CS Mount 2.8-12mm /5-50mm
  • Support Audio: inbuild microphone
  • Support OS: Windows, Linux,Android, Mac and etc
  • Camera with UVC: Driverless, plug-n-play
  • Lens manual zoom: manual focus

Description

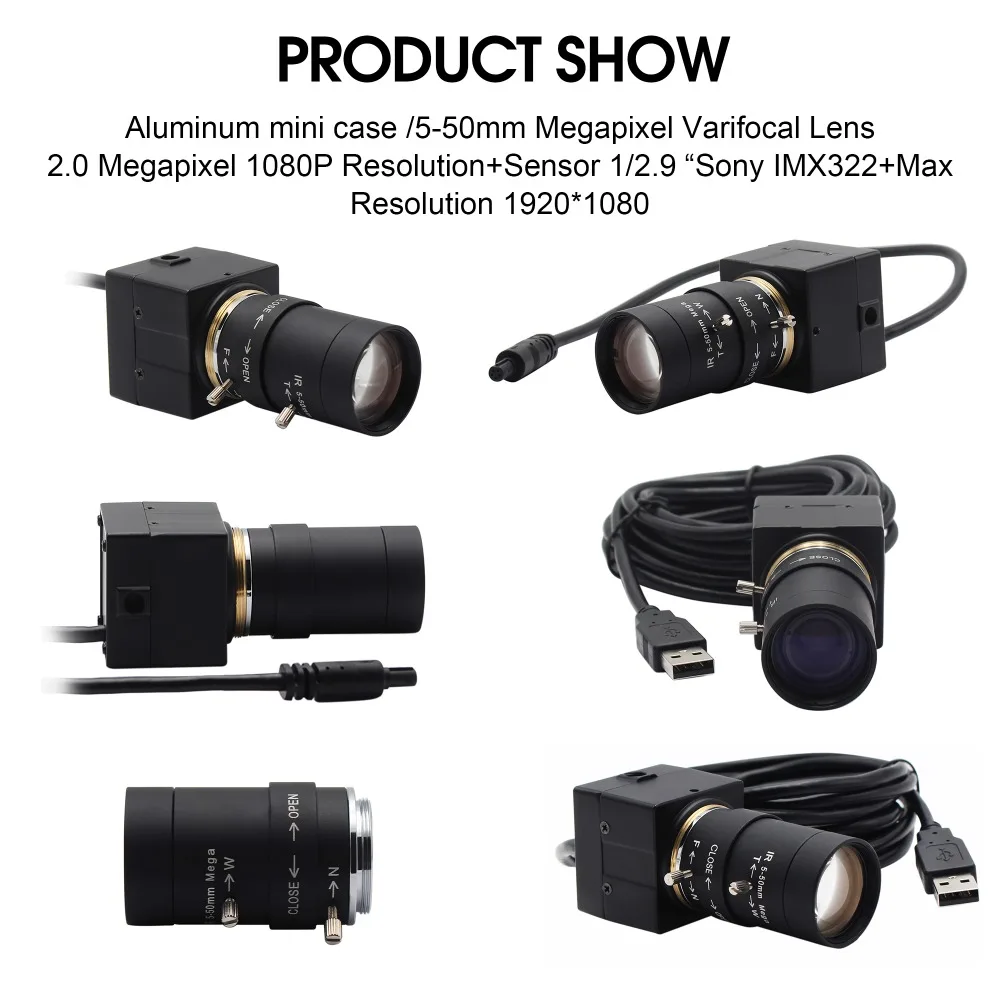

ELP-USBFHD06H Series USB Camera

Based on 1/2.9inch Sony IMX323 Color image sensor , low light webcam mini illumination 0.01lux ,have better image quality at weak light condition . Compression format support H.264, MJPEG,YUY2 can drive 30fps at 1920x1080P . use CS Mount optical zoom lens 5-50mm/2.8-12mm Varifocal Lens.Zoom ,Focus, Iris available to manual adjusted .Camera with UVC , free driver plug and play for PC Laptop in Windows Linux Androd and Mac operation system .

Package includes:

1) 1PCS  2mp low illumination USB Camera with 5-50mm Varifocal lens  (2.8-12mm zoom lens optional)

2) 1PCS 3 m usb cable

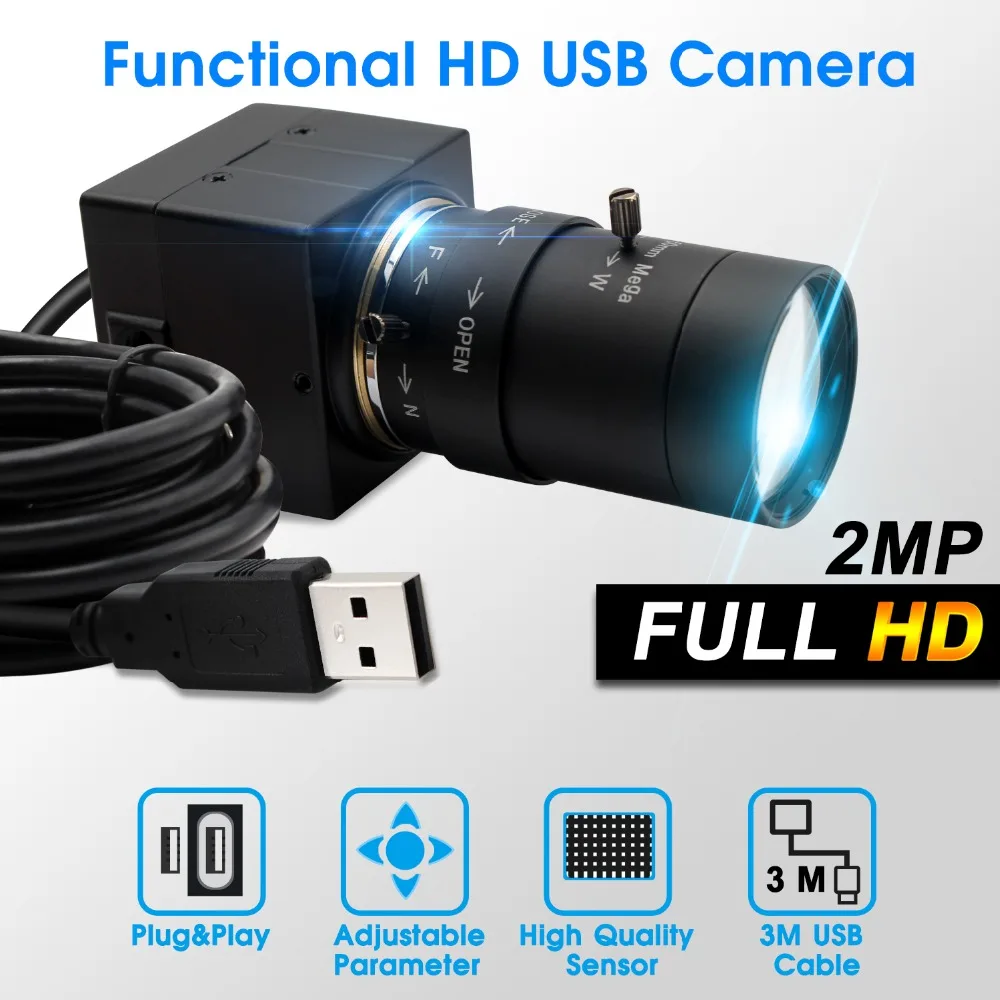

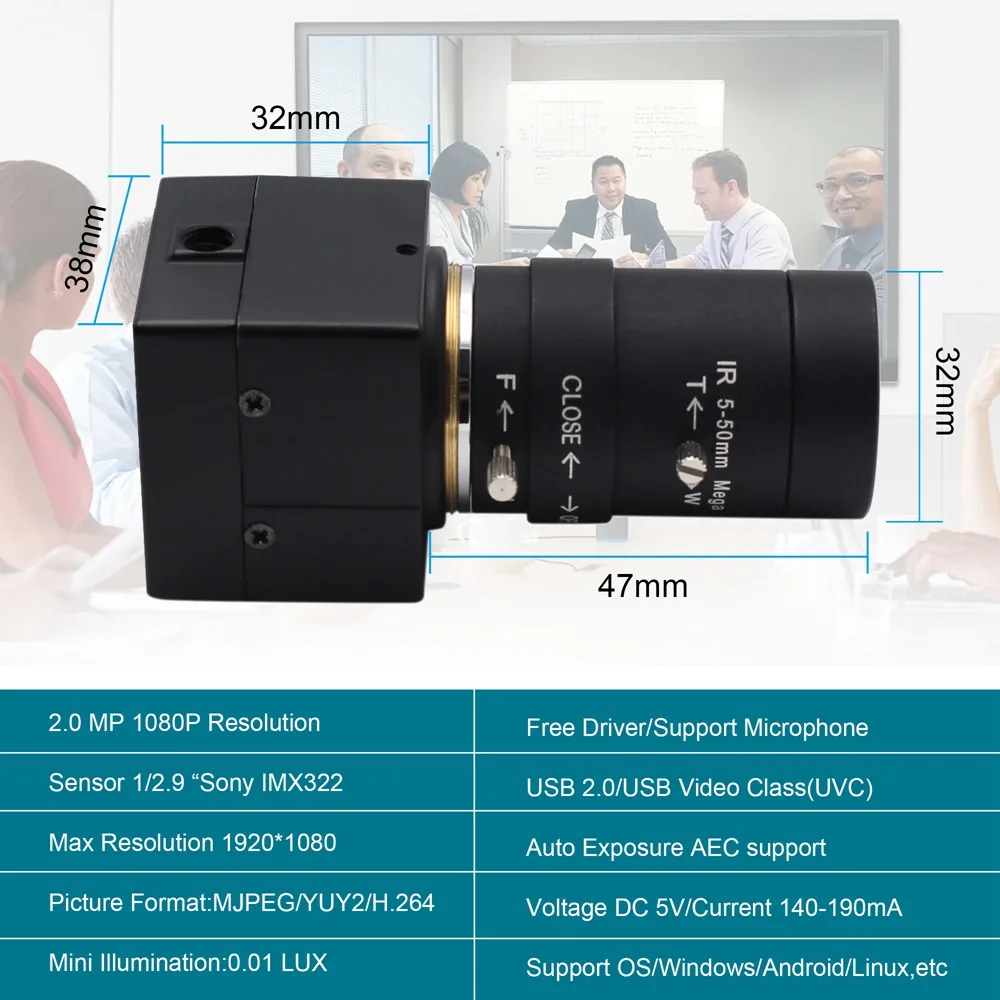

* 2MP USB Camera full hd webcam
* Max resolution :1920*1080P,2.0 Megapixel

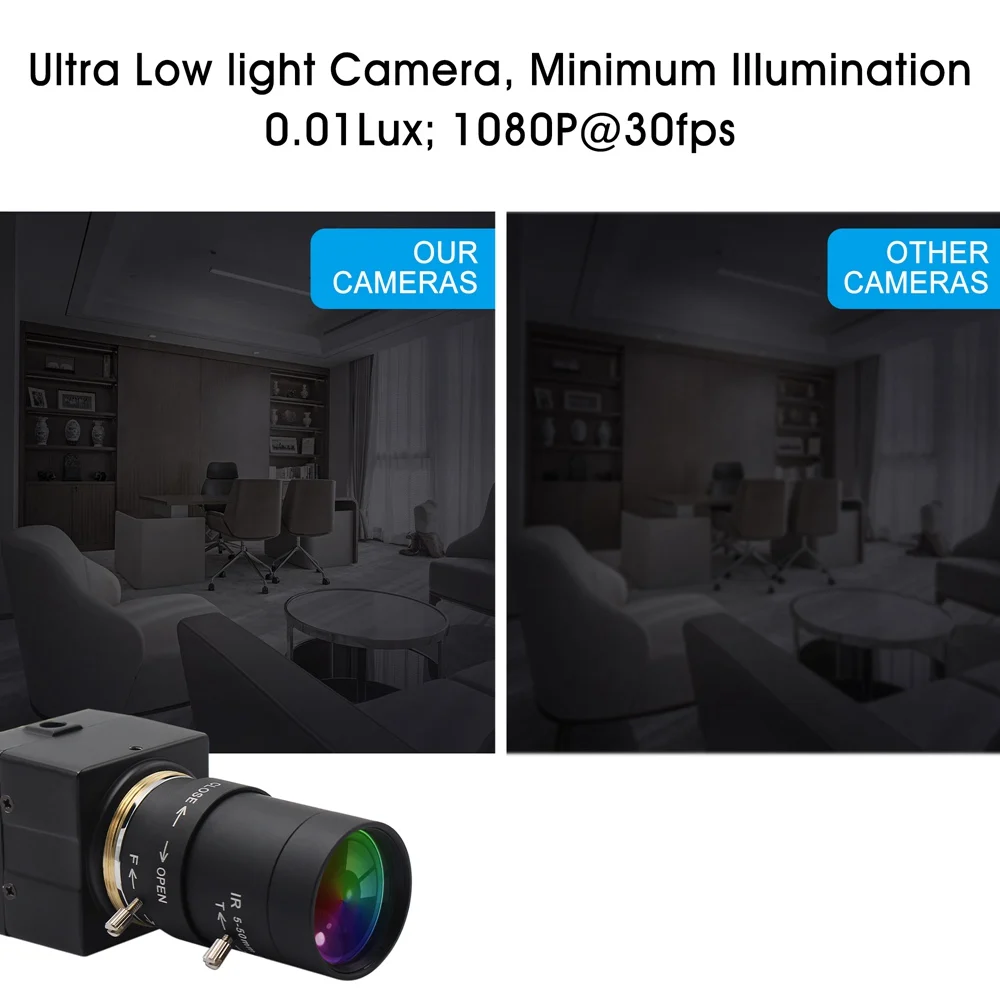

* Ultra Low light Camera,Minimum illumination 0.01lux

* can drive 30fps 1080P FHD h.264/mjpeg

* Highly advanced Sony IMX322/IMX323 Sensor

* Compression format :H264/MJPEG / YUV2(YUYV)

* White balance Function:   Excellent indoor and outdoor effects, vivid colors

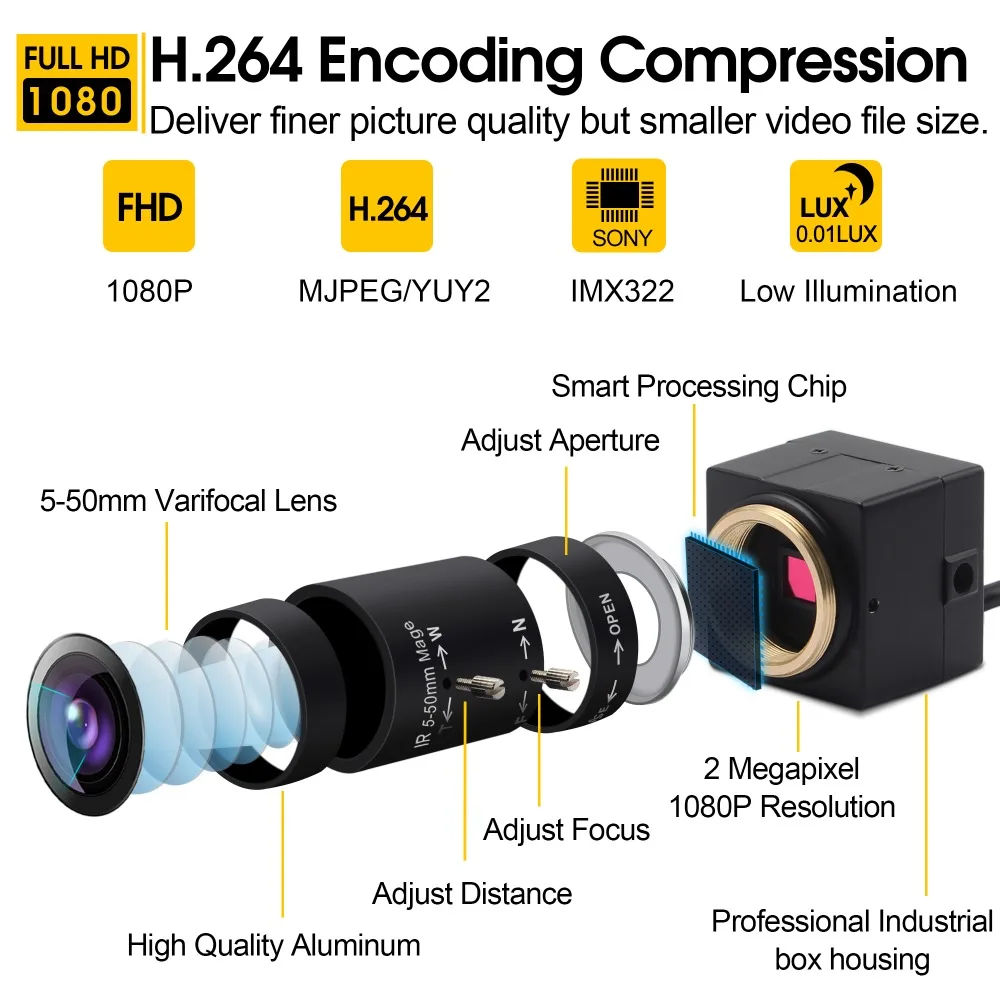

* Equiped with 5-50mm varifocal lens ,optional 2.8-12mm lens

Zoom ,Focus ,Iris adjusted manually .

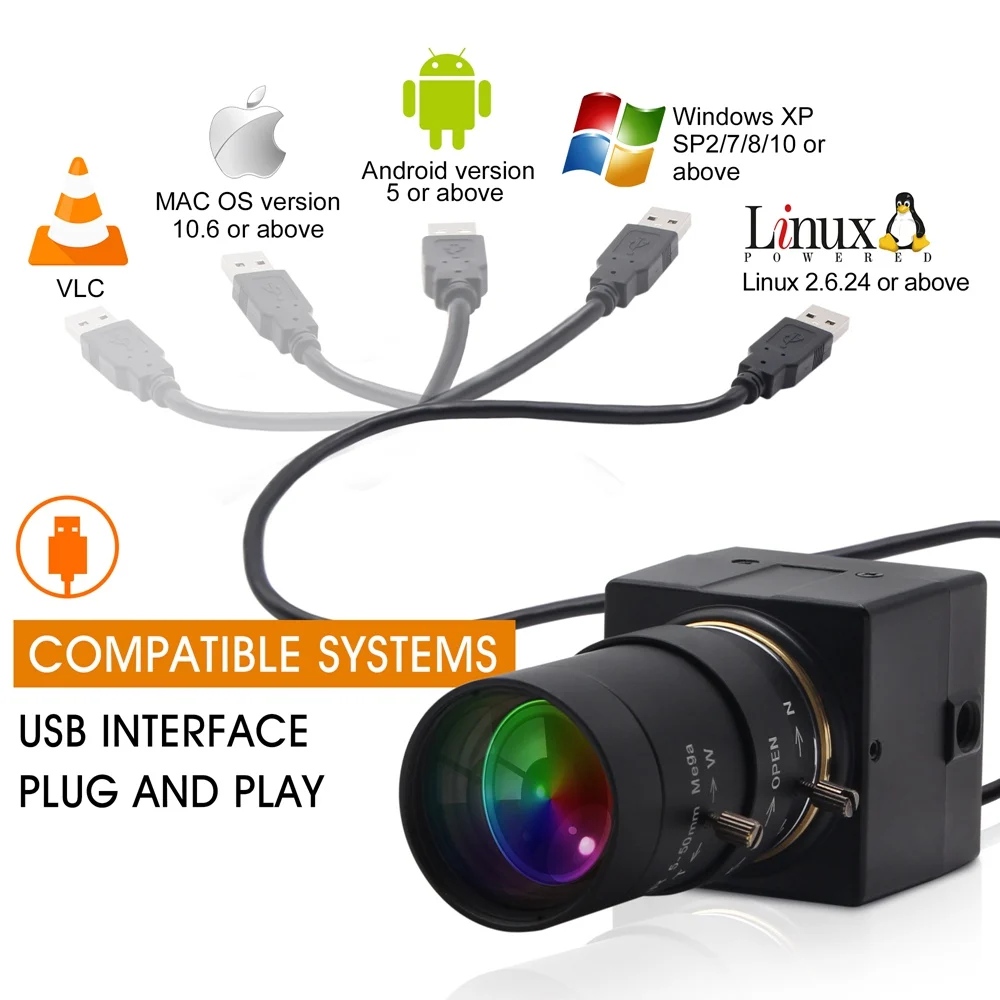

* Free Diver ,plug and play ,compatible with most operation systems Windows, Linux, Android, Mac OS, Ubuntu, Raspberry Pi…

*Widely application :Well used for industrial camera ,video conference camera ,Online class /live broadcast, high-definition photography,  face recognition, document scanning, ID Card/passpord scanning and etc

Model

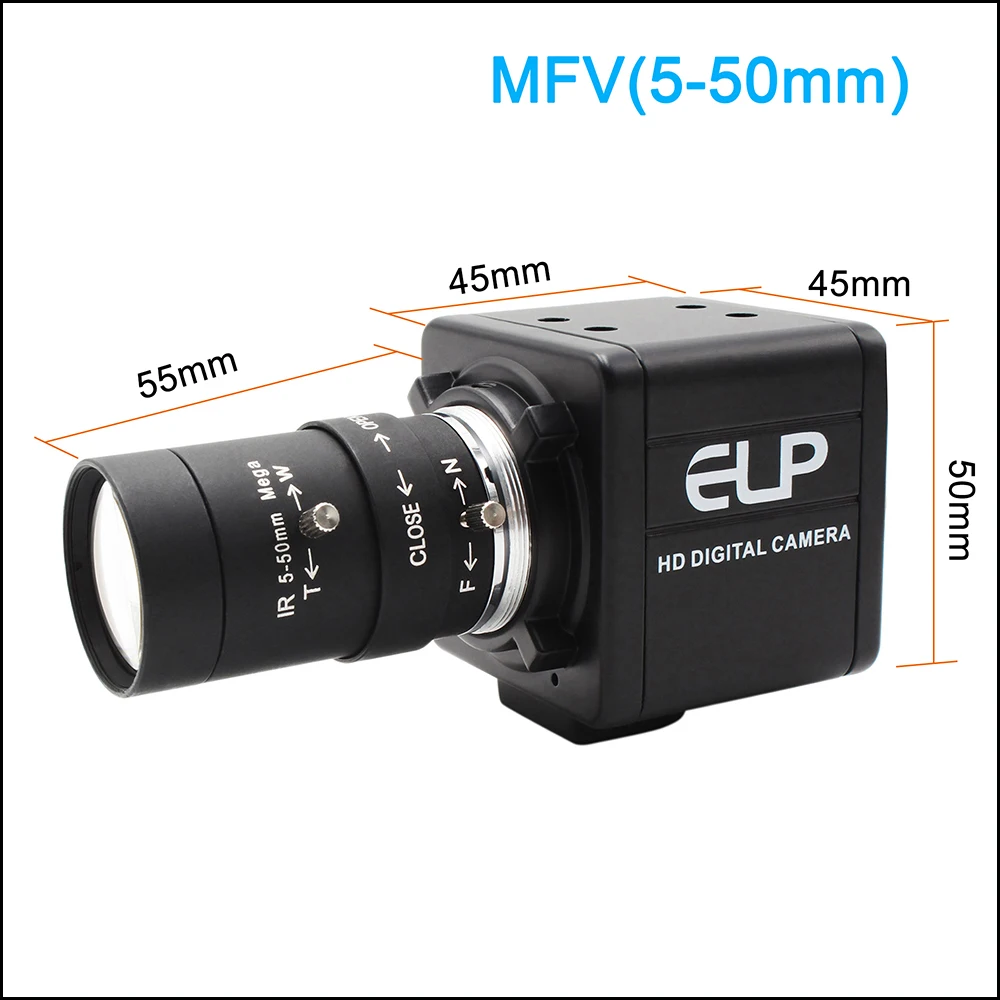

ELP-USBFHD06H-SFV(5-50)   (5-50mm 10x zoom varifocal lens)

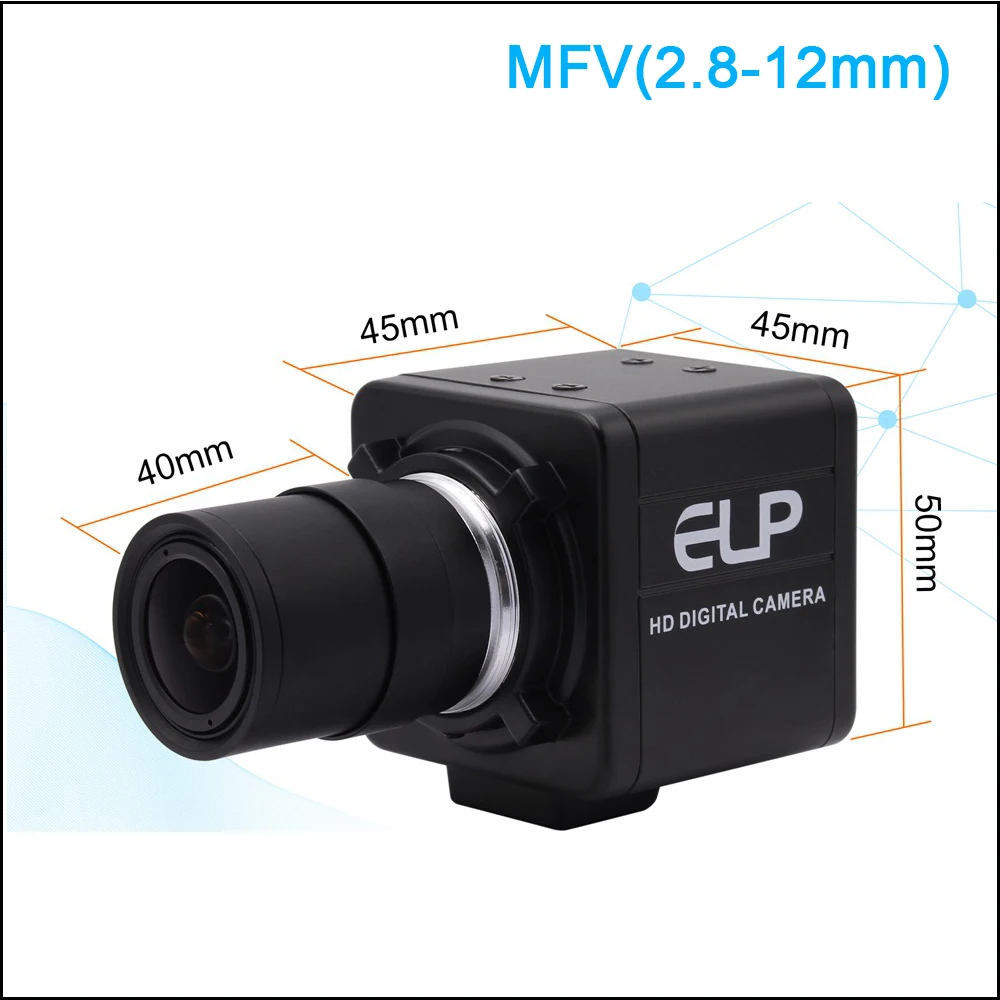

ELP-USBFHD06H-SFV(2.8-12)   (2.8-12mm zoom 3x lens)

Image Sensor

With 1/2.9 inch  Sony IMX323

Pixel Size

12.8X11.6 mm

image area

2000(H)X1121(V)  approx. 2.24 M pixels

Max. Resolution

1080P

Compression format

H264 /MJPEG / YUV2（YUYV）

Resolution & frame

H264：

320X240@ 30fps /352X288@ 30fps /640X360@ 30fps /

640X480@ 30fps
/800X600@ 30fps/1280X720@ 30fps/1920X1080@ 30fps
MJPEG：

320X240@ 30fps /352X288@ 30fps /640X360@ 30fps /

640X480@ 30fps
/800X600@ 30fps/1280X720@ 30fps/1920X1080@ 30fps
YUV：

320X240@ 30fps /352X288@ 30fps /640X360@ 30fps /

640X480@ 30fps //800X600@ 15 fps

S/N Ratio

42dB

Dynamic Range

86dB

Sensitivity

5.0V/lux-sec@550nm

Mini illumination

0. 01 lux

Shutter Type

Electronic rolling shutter / Frame exposure

Connecting Port type

USB2.0 High Speed

Free Drive Protocol

USB Video Class（UVC）

Support OTG Protocol

USB2.0 OTG

AEC

Support

AEB

Support

AGC

Support

Adjustable parameters

Brightness, Contrast, Saturation, Hue, Sharpness, Gamma,

Gain, White balance, Backlight Contrast, Exposure

Lens Parameter

5-50mm varifocal lens ,2.8-12mm CS Mount lens

Digital audio

High quality digital MIC, support single, dual channel

LED board power connector

Support  2P-2.0mm socket

Power supply

USB BUS POWER  4P-2.0mm socket

Power supply

DC5V

Operating Voltage

140mA~190mA

Working current

-10～70℃

Working temperature

-20～85℃

Board size /Weight

 41*41MM / about 400g

Cable

Standard  3M BMW Cable

Operating system request

Windows
Linux 2.6 or above
Android 4.0 or above

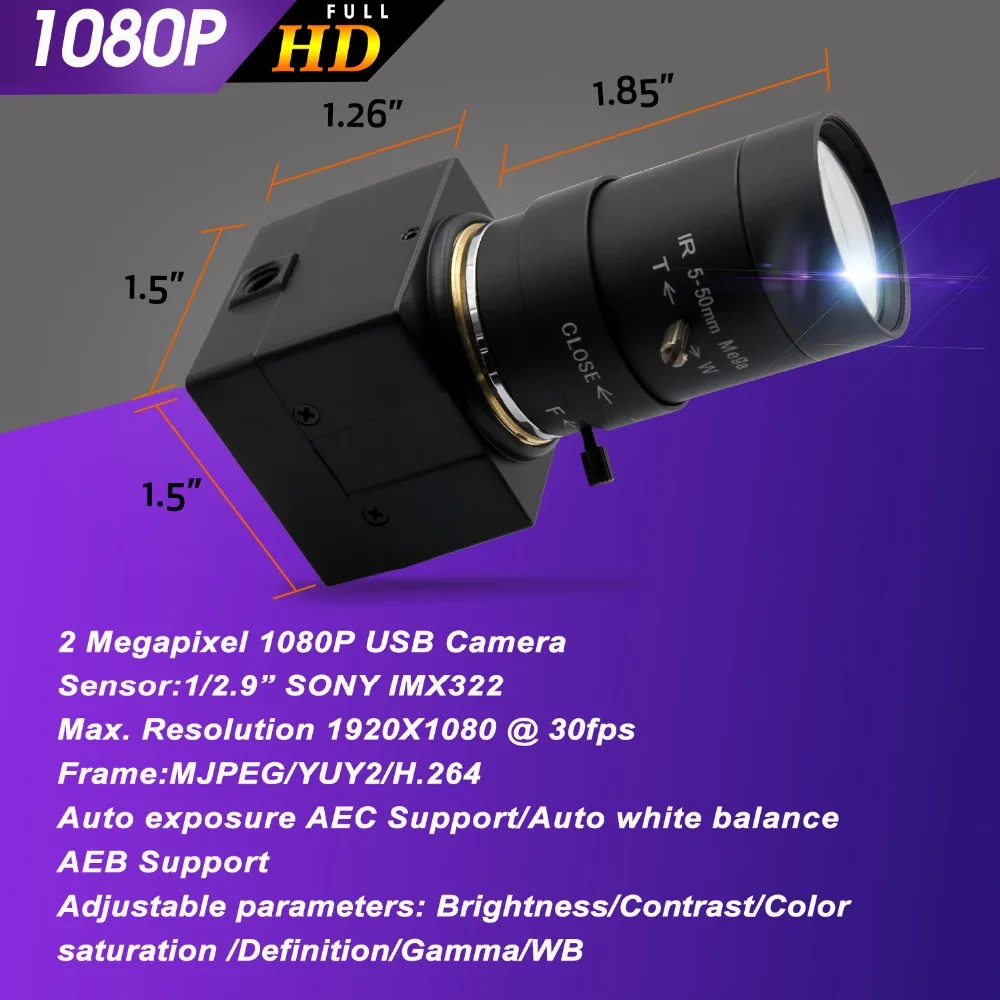

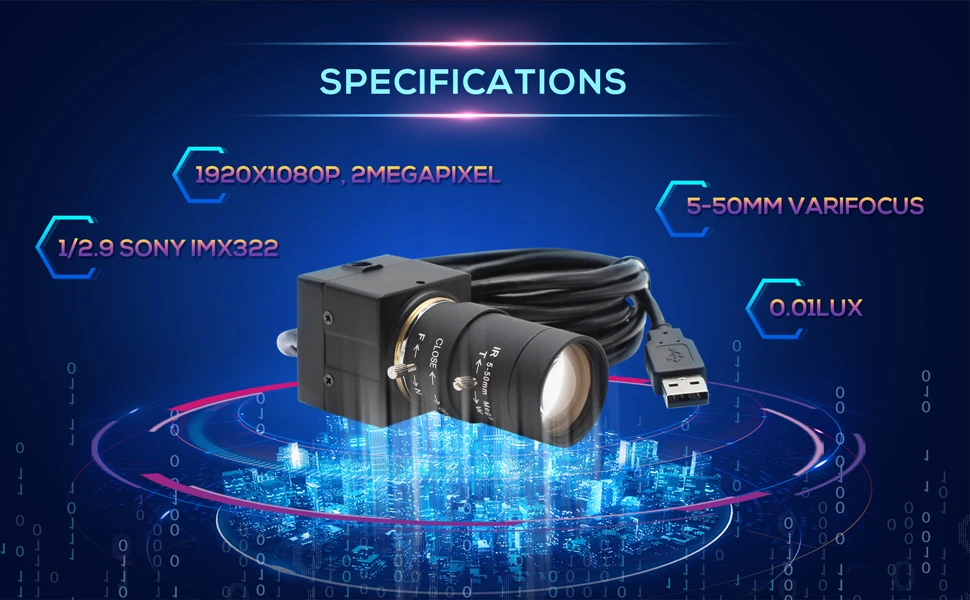

Ultra Low light Camera, Minimum illumination 0.01lux
*Highly advanced Sony IMX322 Sensor
*Max resolution :1920*1080P ,2.0 Megapixel
* Compression format : H264 /MJPEG / YUV2(YUYV)
*Come with microphone on the board which support single channel and dual channel.
*Equiped with 5-50mm varifocal lens
*USB 2.0 High speed port
*Support OTG protocal: can connect your mobile via OTG cable
*White balance adjustable: Resolve color reduction and tone processing issues

ELP Standard designed Packing for usb cameras:

Optional Housing and lens
