ELP 8MP 4K 3264X2448 IMX179 USB Webcam 5-50mm Varifocal CS lens Hd USB Industrial Mini Case Inside Surveillance USB Camera

ELP 8MP 4K 3264X2448 IMX179 USB Webcam 5-50mm Varifocal CS lens Hd USB Industrial Mini Case Inside Surveillance USB Camera

Ailipu Technology Co.,Ltd, who have 19 years history, is a professional manufacturer of surveillance system .

Ailipu has its own brand ELP, which already well know in security surveillance system. With its own unique R&D team as the basic, oriented by dedicated sales team,

ELP already developed into a prefessional video products company integrate with developing, production, sales and also service all together.

ELP is developing its own special USB Cameras for industrial vision. Recently, we present new USB cameras module range from 30W Pixel, 1megapixel, 2megapixe, 3megapixel, 5 megapixel, 5megapixel autofocus,  8megapixel to 13megapixel which already used in all kinds of industrial system.

ELP can also OEM or customize products specially by customers’ requirements. We always believe”Together everybody achives more!”, and we are looking forward your choice and join, we fought together,open up a new future of video surveillance industry.

Package include:

1) 1PC 8mp usb webcam with the lens your choose (No lens/2.8-12mm/5-50mm manual varifocal CS lens,4/6/8mm manual focus CS lens)

2) 1PC 3m usb cable  ( 2m/5m cable optional)

Feature

1) More than HD: This camera adopts an 8MP IMX179 sensor for sharp image and accurate color reproduction, Max. still resolution 3264H x 2448V.

2) 1/3.2” CMOS IMX179 Image sensor Webcams: High quality and low color reproduction deviation produce sharp images and more details. Picture format MJPEG or YUY2 optional, cameras with high resolution can be used in any video system for personal or industrial

3) High quality  HD 2.8-12mm and 5-50mm Manual varifocal CS Mount lens ,4/6/8mm manual focus CS lens,manually adjustable focal length provides you with an ultra-clear image detail to reflect a more realistic environment.

4)With Mini aluminum box case, with standard 3m cable (1m, 2m, 5m optional, also can customize the cable)



5) Plug & Play: UVC-compliant, just connect the camera to PC, laptop, Android device, or Raspberry Pi with the included USB cable without extra drivers to be installed. Compatible with Windows/Linux /Mac OS/Android, support OTG protocol and Raspberry Pi.

6) Applications: Come with a metal case , this tiny camera is highly recommended for the video surveillance system, live streaming, video conference, dashcam, and other vision

Specifications

Model	ELP-USB8MP02G-SFV (No lens) ELP-USB8MP02G-SFV(2.8-12mm) (2.8-12mm varifocus lens) ELP-USB8MP02G-SFV(5-50mm) (5-50mm varifocus lens) ELP-USB8MP02G-SFV(6-60mm) (6-60mm varifocus lens) ELP-USB8MP02G-SFV(3.6-10mm) (3.6-10mm varifocus lens) ELP-USB8MP02G-SFV40 (4mm lens) ELP-USB8MP02G-SFV60 (6mm lens) ELP-USB8MP02G-SFV80 (8mm lens)
Sensor	IMX179
Lens Size	1/3.2 inches
Pixel Size	1.4um
image area	6.18mm x 5.85mm
Max. Resolution	3264(H) X 2448(V) 8Megapixel
Compression format	MJPEG / YUV2（YUYV）
Resolution & frame	3264X2448 MJPEG 15fps YUY2 2fps 2592X1944 MJPEG 15fps YUY2 3fps 2048X1536 MJPEG 20fps YUY2 3fps 1600X1200 MJPEG 20fps YUY2 10fps 1280X960 MJPEG 20fps YUY2 10fps 1024X768 MJPEG 30fps YUY2 10fps 800X600 MJPEG 30fps YUY2 30fps 640X480 MJPEG 30fps YUY2 30fps
USB Protocol	USB2.0 HS/FS USB1.1/USB1.0
S/N Ratio	34dB
Dynamic Range	72.5dB
Sensitivity	3.7V/lux-sec@550nm
Mini illumination	0. 5lux
Shutter Type	Electronic rolling shutter / Frame exposure
Connecting Port type	USB2.0 High Speed
Free Drive Protocol	USB Video Class（UVC）
OTG protocol	USB2.0 OTG
AEC	Support
AEB	Support
AGC	Support
Adjustable parameters	Brightness, Contrast, Saturation, Hue, Sharpness, Gamma,White balance, Backlight Contrast, Exposure
Lens Parameter	2.8-12/5-50mm varifocus CS lens, 4/6/8mm manual focus lens
LED board control interface	Support 2P-1.25mm socket
LED board power connector	Support 2P-2.0mm socket
Power supply	USB BUS POWER 4P-2.0mm socket
Operating Voltage	DC5V
Working current	150mA~240mA
Working temperature	-10～70℃
Storage temperature	-20～85℃
Board size /Weight	38X38mm (compatible 32X32mm)
Cable	Standard 3m (optional 2M,5M)
Operating system request	WinXP/Vista/Win7/Win8/Win10/Win11 Linux with UVC（above linux-2.6.26) MAC-OS X 10.4.8 or later Android 4.0 or above with UVC

Applications

Car and ship control, electronic equipment, oil field equipment, industrial equipment, remote site monitoring, environmental monitoring, etc.

used for all kinds of machine as below:

machinery equipment, all-in-one machine, POS equipment, STB, smart box  TV BOX, advisement player, LED display, automatic vending machine, safety box, notebook, video door phone, MID, Tablet external, evaluator, Medical Equipment, on-the-spot law enforcement, door bell and button system, cat-eye system, simple security system, teaching system, Interactive system, automobile data recorder. Project video capture,  credit card machine, attendance machine, Voting system, High speed video shooting Device, exam system, Driving learning system, Industrial camera, biological microscope, box inside surveillance, micro HD surveillance, endoscope, Medical auxiliary equipment, etc.

Product detail

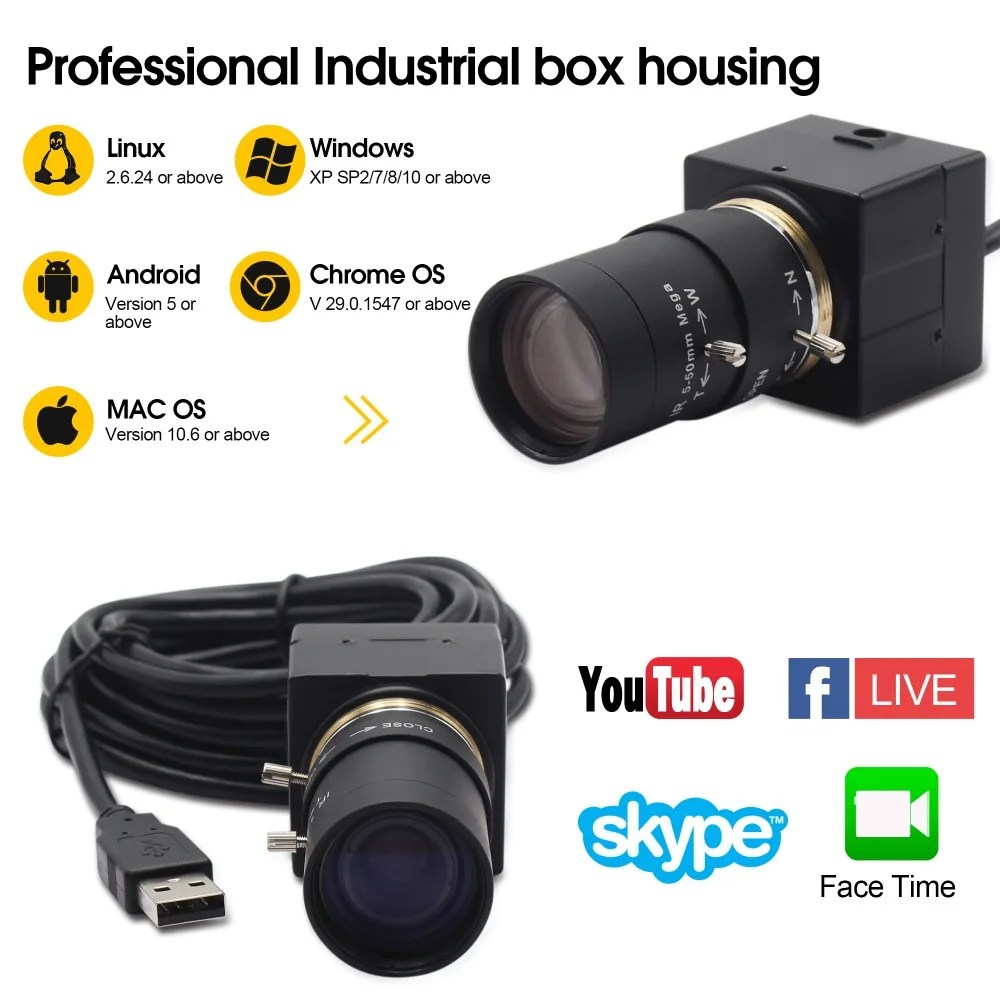

8MP USB Camera with 5-50mm lens

6-60mm varifocus lens

3.6-10mm varifocus lens

4/6/8mm manual focus lens

Package

Our USB Camera include VGA 640X480,1MP,1.3MP,2MP,5MP and 8MP resolution
