G104STN01.0 G104SN02 V.2 G104VN01 V.1 G104SN03 V.5 Original stock test shows normal
High Speed USB Camera 1080P HD MJPEG 60fps/120fps/260fps UVC OmniVision OV4689 CMOS USB PC Webcam Camera With Varifocal CS Lens
- Delivered today (order Mon-Fri before 12:00, delivery between 17:00 and 22:00)
- Including shipping costs, sent by Rare Good Store
- Pick up at a Rare Good Store collection point is possible
- 30 days to change your mind and free returns
- Day and night customer service
Description
- Hign-concerned Chemical: None
- Zoom type: Optical zoom
- Zoom: 10X
- Lens Quantity: Single Lens
- Megapixels: 2MP
- TF Card: None
- Power Supply: Normal
- Internal Storage: None
- Installation: Normal
- Color: black
- is_customized: Yes
- Audio Output: None
- Minimum Illumination(Lux): 0.1Lux
- Viewing Angle : 100°
- Video Compression Format: MJPEG
- IR Distance(m): 0
- Dimensions (L x W x D)(mm): 42*42mm
- Power Supply(V): 5V
- Power Consumption(W): DC 5V/ current: 150mA
- Supported Mobile Systems: Android
- Sensor Brand: Omnivision
- Sensor: CMOS
- Model Number: ELP-USBFHD08S-MFV
- Supported Operating Systems: Windows 10,Windows Vista,Windows 8,Windows 7,Mac OS,Windows XP
- Lens (mm): 6mm
- Connectivity: USB
- High Definition: 1080P(Full-HD)
- Style: Mini Camera
- Brand Name: ELP
- Origin: Mainland China
- Special Features: mini
- Certification: CE,FCC,RoHS
- Image Sensor: OmniVision OV4689
- Resolution: 1920X1080P, 2megapixel
- Lens: 2.8-12mm varifocal lens and 5-50mm varifocal lens optinal
- High frame rate frame: MJPEG 1080P 60fps ,720P 120fps ,360P 260fps
- Compression format: MJPEG / YUV2(YUYV)
- Mini illumination: 0. 1lux
- Connecting Port type: USB2.0 High Speed
- Shutter Type: Electronic rolling shutter / Frame exposure
- Cable: 2m/ 3m optional
- Operating system request: Android, Linux, windows8 or above, MAC 10.4.8 or later
- Pixel: 2MP
- Technology: High speed usb 2.0 interface
ELP High Speed USB Camera 1080P HD MJPEG 60fps/120fps/260fps UVC OmniVision OV4689 CMOS USB PC Webcam Camera With Varifocal CS Lens
Package includes:
1) 1PC 2mp high speed usb camera with 2.8-12mm /5-50mm varifocal lens optional,or without lens
2) 1PC 3m usb cable
-
Ultra HD Resolution: 1080P 60fpsHD USB Camera based on a CMOS OV4689 image sensor, this is a great camera with high pixel technology for sharp image and accurate color reproduction.
-
Lens : Assembled with wide angle 2.8-12mm lens or narrow angle 5-50mm lens optional. 5-50mm len is better for capture object in more than 5m distance.
-
High Frame Rates: 2 Megapixel HD USB camera has a high frame rate, this USB camera delivery decent and smooth image quality. MJPEG 60fps@1080P; 120fps@1280 x 720; 260fps@640 x 360.
-
Plug & Play: UVC-compliant, just connect the camera to a PC computer, laptop, Android device, or Raspberry Pi with the USB cable without extra drivers to be installed.
-
Applications: This 1080P USB Camera has a mini size, with a 1/4-20 mounting hole on buttom ,easy to install and use, widely used for the video surveillance system, live streaming, video conference, dashcam, robotic vision and other video vision applications. Some customers use this camera for Golf wsing or for capturing other high speed moving object. But camera is not suitable for low light condition.
1. Main Specifications
|
Model |
ELP-USBFHD08S-MFV(2.8-12) (with 2.8-12mm varifocal lens) ELP-USBFHD08S-MFV(5-50) (with 5-50mm varifocal lens) ELP-USBFHD08S-MFV (without lens) (Only lens is different, other parameter is the same) |
|
Sensor |
OV4689 |
|
Lens Size |
1/3 inch |
|
Pixel Size |
2.0µm X 2.0µm |
|
image area |
5440 µm x 3072 µm |
|
Max. Resolution |
1920(H)X1080(V) |
|
Compression format |
MJPEG / YUV2(YUYV) |
|
Resolution & frame |
1920X1080 MJPEG@ 60fps 1280X720 MJPEG@ 120fps 640X360MJPEG@ 260fps |
|
S/N Ratio |
38.3dB |
|
Dynamic Range |
64.6dB |
|
Sensitivity |
1900mV/lux-sec@550nm |
|
Mini illumination |
0.1lux |
|
Shutter Type |
Electronic rolling shutter / Frame exposure |
|
Connecting Port type |
USB2.0 High Speed |
|
Free Drive Protocol |
USB Video Class(UVC) |
|
AEC |
Support |
|
AEB |
Support |
|
AGC |
Support |
|
Adjustable parameters |
Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, |
|
Lens Parameter |
2.8-12mm /5-50mm varifocal lens optional |
|
Power supply |
USB BUS POWER |
|
Operating Voltage |
DC5V |
|
Working current |
150mA~185mA |
|
Working temperature |
0-70degree |
|
Board size /Weight |
38*38mm |
|
Cable |
Standard 3 meter usb cable |
|
Operating system request |
Win XP/Vista/Win7/Win8 Linux with UVC(above linux-2.6.26) MAC-OS X 10.4.8 or later Android 4.0 or above with UVC |
Used for all kinds of machine as below:
machinery equipment, all-in-one machine, POS equipment, STB, smart box TV BOX, advisement player, LED display, automatic
vending machine, safety box, notebook, video door phone, MID, Tablet external, evaluator, Medical Equipment, on-the-spot law enforcement, door bell and button system, cat-eye system, simple security system, teaching system, Interactive system,
automobile data recorder. Project video capture, credit card machine, attendance machine, Voting system, High speed video shooting Device, exam system, Driving learning system, Industrial camera, biological microscope, box inside surveillance, micro HD surveillance, endoscope, Medical auxiliary equipment, etc.
If you need windows test software, please leave me message, will send you:
High frame rate 1080P USB Camera,

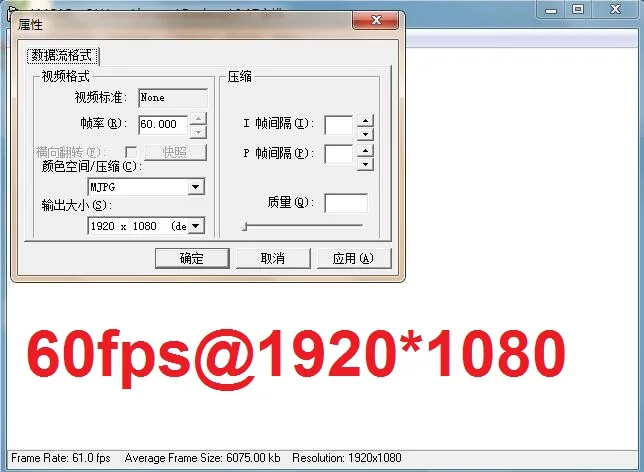

Real high fps shown via windows software:

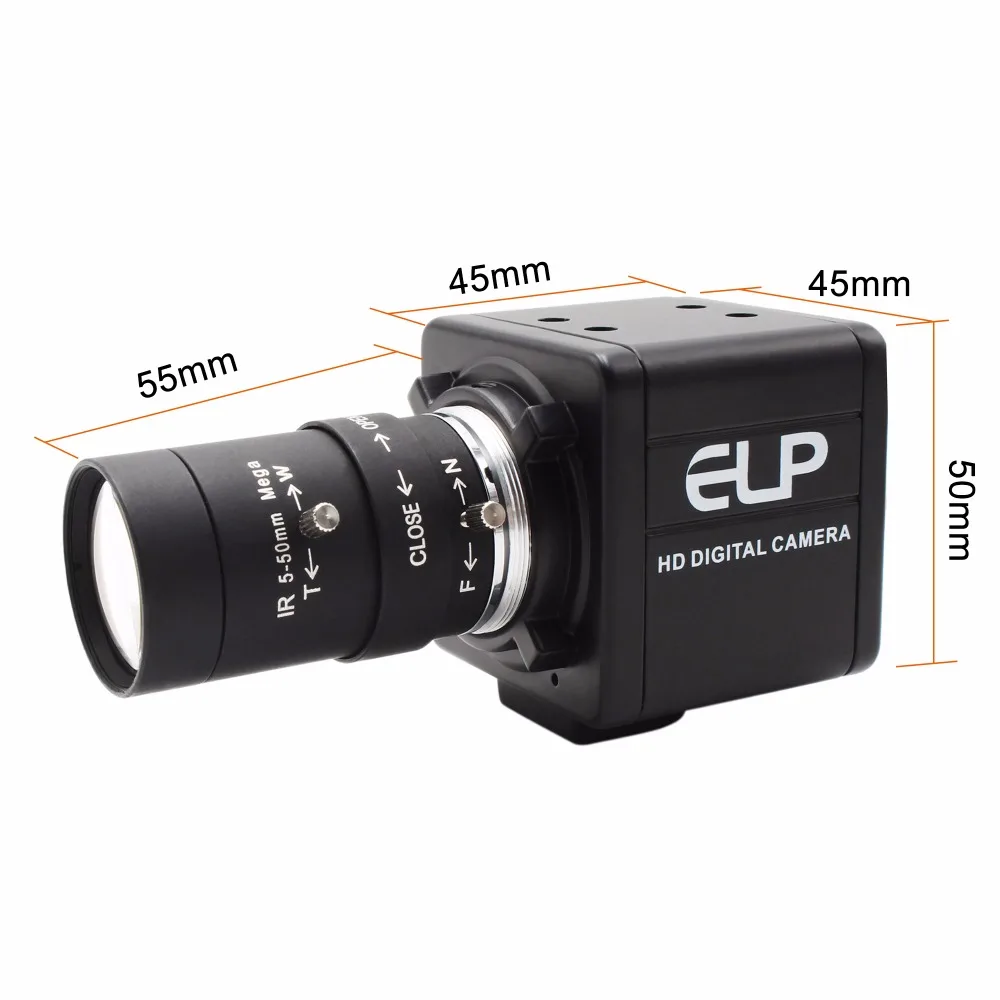

Manual Varifocal 2.8-12mm/5-50mm lens optional

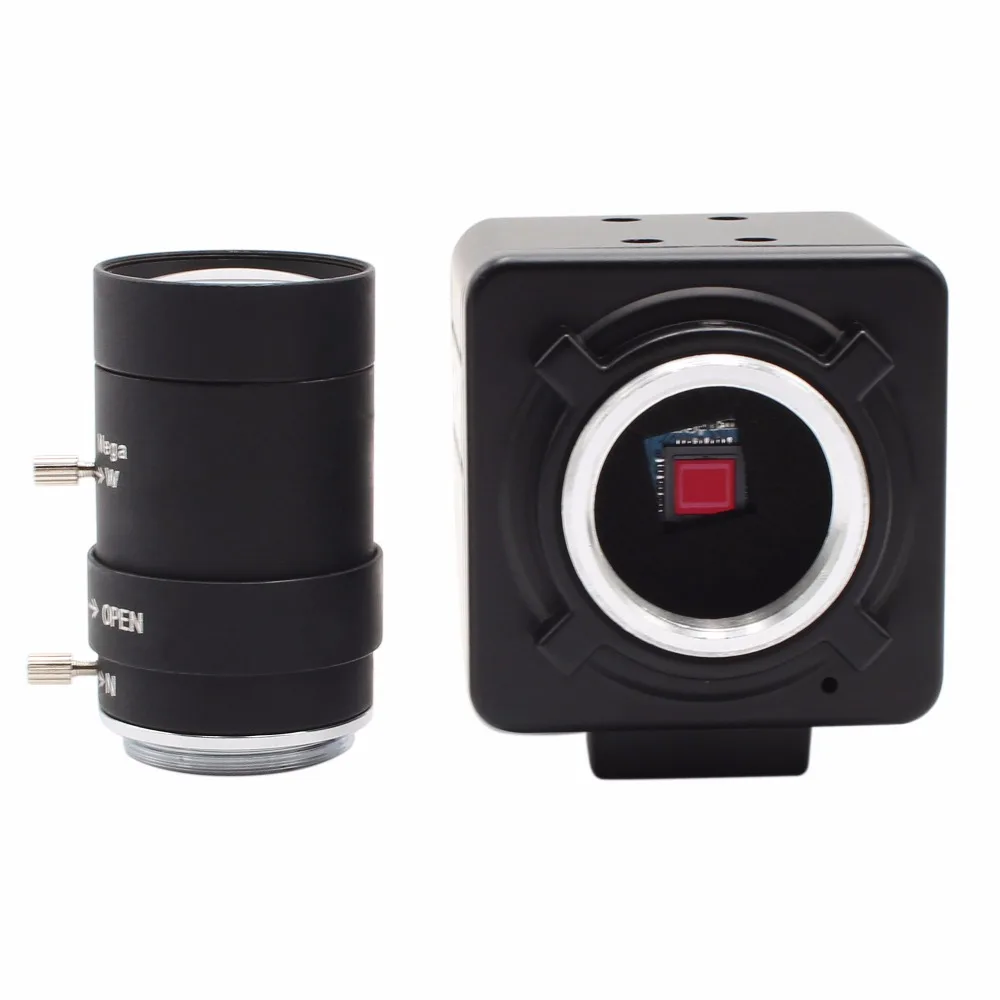

CS mount Lens is changable:(IF you need CS to C adapter, please tell me)
Effect picture:
Packing:
Shenzhen Ailipu Technology Co.,Ltdfounded in 2005, is a 18 years professional USB Cameras manufacturer. Our own brandELPis well known in USB cameras industry domestic and abroad. We achieve quality certificate like ISO9001, CE, FCC, ROHS, UL.
We produce Multiple USB Cameras for Industrial, Commercial, Medical vision application. Like ATM, Kiosk, Robot, Medical device,Smart factory, video surveillance. Resolution range from 0.3MP, 1MP, 2MP, 3MP, 5MP, 8MP to 48MP. And recently we launch new ultra HD USB cameras like Super Sharp 48MP 16MP, 4K HDMI cameras.
We also manufacture special function Auto focus cameras, High frame rate cameras, Low light cameras, WDR Cameras, Global shutter camera, H.264 cameras, USB 3.0 cameras, Stereo cameras.
OEM or Customization service is also available
Your attention, please:
Our Payment term
1.We accept different payment: Alipay ,Paypal , T/T, Western Union,Visa ,MasterCard ,Escrow
3. Shipment by Aliexpress standard shipping generally takes
25-45working days(some countries can be much longer) ,
