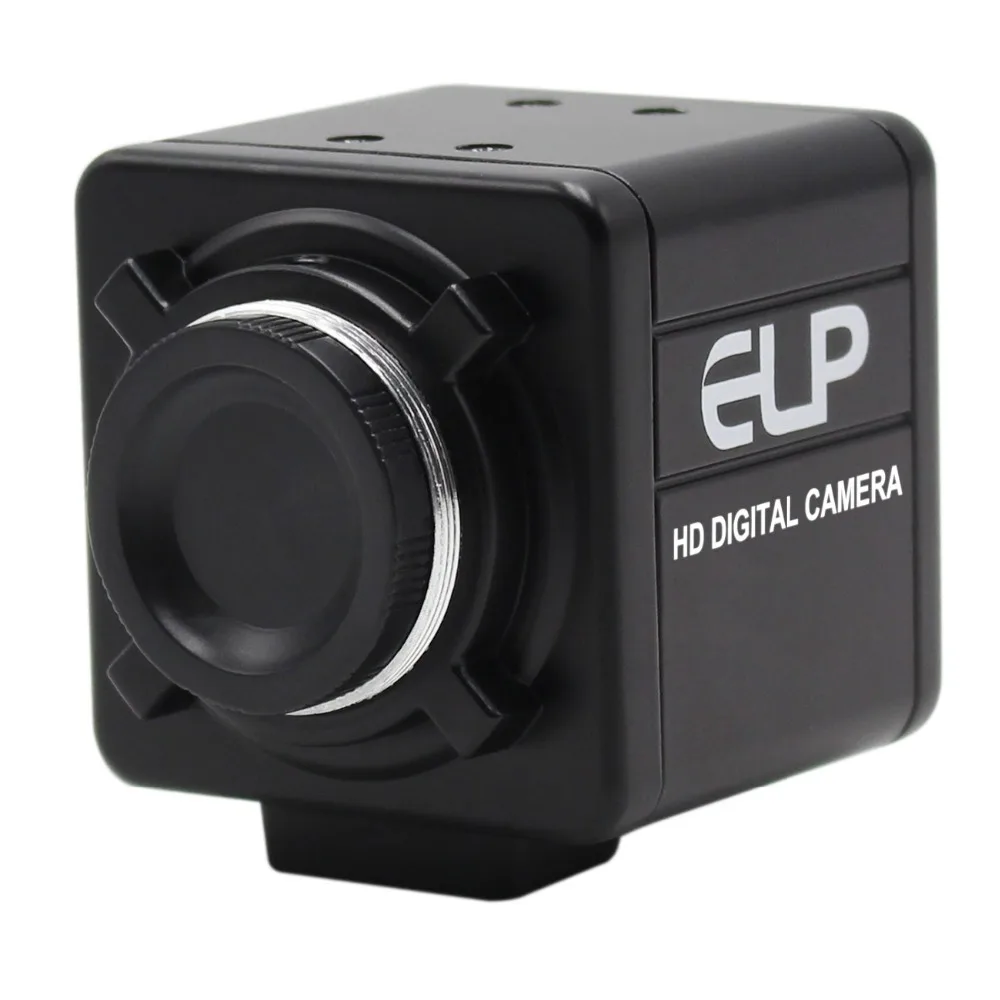

High Speed Webcam MJPEG 260fps 360P/ 120fps 720P/ 60fps 1080P OmniVision OV4689 CMOS USB Web Camera With Varifocal CS Lens
- Delivered today (order Mon-Fri before 12:00, delivery between 17:00 and 22:00)
- Including shipping costs, sent by Rare Good Store
- Pick up at a Rare Good Store collection point is possible
- 30 days to change your mind and free returns
- Day and night customer service
Description
- Hign-concerned Chemical: None
- Zoom type: Optical zoom
- Color Night Vision: No
- Scene: Indoor and outdoor
- Digital Zoom: None
- Megapixels: 2MP
- TF Card: None
- Power Supply: Normal
- Internal Storage: None
- Installation: Embedded
- Color: black
- is_customized: Yes
- Audio Output: None
- Minimum Illumination(Lux): 0.5lux
- Viewing Angle : 85°
- Video Compression Format: MJPEG
- IR Distance(m): 0m
- Dimensions (L x W x D)(mm): 45*45*50mm
- Power Supply(V): DC 5V
- Supported Mobile Systems: Android
- Sensor Brand: Omnivision
- Sensor: CMOS
- Model Number: ELP-USBFHD08S-MFV
- Supported Operating Systems: Windows 10,Windows vista,Windows 8,Windows 7,Windows 98,Mac OS,Windows XP
- Lens (mm): 2.8-12mm,5-50mm
- Connectivity: USB
- High Definition: 1080P(Full-HD)
- Style: Box Camera
- Brand Name: ELP
- ELP Model: ELP-USBFHD08S-MFV
- Origin: Mainland China
- Certification: CE,FCC
- Smart home platform: None
- Special Features: Vandal-proof
- Max.resolution: 1920 x 1080
- USB Industrial Webcam: Sensor CMOS OV4689
- USB2.0 Camera: Compatible with all kinds of industrial field
- High Speed USB2.0: 120 fps in 1280X720 ,60 fps in 1920 x 1080
- UVC Camera: device developing for Mac OS,Linux ,Android,Windows CE, Windows XP SP2
- Driver: Free driver
- lens: 4/6/8mm lens,2.8-12mm/5-50mm/6-60mm manual varifocus lens
- USB cable: 3m(2/5m optional)
High Speed Webcam MJPEG 260fps 360P/ 120fps 720P/ 60fps 1080P OmniVision OV4689 CMOS USB Web Camera With Varifocal CS Lens
Ailipu Technology Co.,Ltd, who have 19 years history, is a professional manufacturer of surveillance system .
Ailipu has its own brand ELP, which already well know in security surveillance system. With its own unique R&D team as the basic, oriented by dedicated sales team,
ELP already developed into a prefessional video products company integrate with developing, production, sales and also service all together.
ELP is developing its own special USB Cameras for industrial vision. Recently, we present new USB cameras module range from 30W Pixel, 1megapixel, 2megapixe, 3megapixel, 5 megapixel, 5megapixel autofocus, 8megapixel to 13megapixel which already used in all kinds of industrial system.
ELP can also OEM or customize products specially by customers’ requirements. We always believe”Together everybody achives more!”, and we are looking forward your choice and join, we fought together,open up a new future of video surveillance industry.
No longer be anxious about installing the driver! The native UVC drivers of Windows, Linux, and Mac shall be compatible with this camera so that it does not require extra drivers to be installed.
Package include:
1) 1PC High frame rate 2mp usb webcam 2.8-12mm/5-50mm/6-60mm varifocal lens,4/6/8mm manual focus lens
2) 1PC 3m usb cable ( 2m/5m cable optional)
|
Model
|
ELP-USBFHD08S-MFV
|
||
|
Optional Model
|
ELP-USBFHD08S-MFV (2.8-12mm) (2.8-12mm varifocus CS lens)
ELP-USBFHD08S-MFV (5-50mm) (5-50mm varifocus CS lens) ELP-USBFHD08S-MFV(6-60mm) (6-60mm varifocus CS lens) ELP-USBFHD08S-MF40 (4mm manual focus CS lens) ELP-USBFHD08S-MF60 (6mm manual focus CS lens) ELP-USBFHD08S-MF80 (8mm manual focus CS lens) ELP-USBFHD08S-MFV (No lens)
All above models, specifications are same, just lens different |
||
|
Resolution & FPS
|
1920X1080 MJPEG@ 60fps
1280X720 MJPEG@ 120fps 640X360MJPEG@ 260fps |
||
|
Sensor
|
OV4689 Sensor
|
Connecting Port Type
|
USB2.0 High speed
|
|
Sensor Size
|
1/3 inch
|
Support free driver
|
USB Video Class(UVC)
|
|
Pixel Size
|
2.0μm x 2.0μm
|
Shutter Type
|
Electronic rolling shutter/ Frame exposure
|
|
Mini illumination
|
0.1Lux
|
AEC
|
Support
|
|
Max. Resolution
|
FULL HD 1920(H)x1080(V)pixels
|
AEB
|
Support
|
|
Picture format
|
MJPEG or YUY2(YUYV)
|
AGC
|
Support
|
|
Lens Parameter
|
2.8-12/5-50mm varifocus lens
4/6/8mm lens optional
|
Adjustable parameters
|
Brightness/Contrast/Saturation,
Hue, Sharpness,Gamma, Exposure White balance,Backlight Contrast |
|
Cable
|
Standard 3M/ Optional 2m,5m
|
work temperature
|
DEGREES(-20~70)
|
|
Board Size/
Weight |
38*38mm
|
Certifications
|
FCC and CE
|
|
Power supply
|
USB BUS POWER
|
Power Supply
|
DC 5V
|
|
USB Protocol
|
USB2.0 HS/FS
|
Operating Voltage
|
150mA~185mA
|
|
OTG protocol
|
USB2.0 OTG
|
Special function
|
High FPS
|
|
Night vision
|
Without (Do not advice Connect IR LED Board)
|
LED board power connector
|
Support, 2P-2.0mm socket
|
|
Support OS
|
WinXP/Vista/WIN7/WIN8 /WIN9/WIN10/WIN11 etc.
Linux with UVC Mac-OS X 10.4.8 or later Wince with UVC, Android 4.0 or above |
||
About High Speed USB Camera:
High speed real-time uncompressed image recording, real-time display
It ensures frame loss and solves the problems of frame loss and power failure protection loss in traditional memory recording mode;
The system works independently,hardly occupies computer resources, and has high reliability
The software interface is simple, convenient for secondary development and real-time processing
High Technology Image Sensor:
Adopt High Technology 1/3″CMOS OV4689 Image Sensor,Work Efficiently.
High Resolution 1080P:Max Resolution:
1920H) X 1080(V) 2Megapixel
2mp Full HD high pixel technology for sharp image and accurate color reproduction.
High Speed:
can drive 1080P@60fps,720P@120fps,360P@260fps,usb camera with fast frame for quick moving objects capturing.
ELP 2.8-12/5-50/6-60mm manual focus camera with good zoom in and out:
A varifocal camera arrives with 3m of cabling and can film in very high resolution in extreme close up. The manual zoom camera housing is of all metal design and therefore very sturdy,the variable focus camera is plug and play so very easy to set up on a PC
Compatible with muti software & operating system: Support Windows, Linux, Android, Mac OS, Ubuntu, Raspberry Pi, Jetson Nano…
Comptible with Amcap, iSpy, USB Camera, Fswebcam, OpenCV, VLC, Photo Booth, Facetime, Quick time , Webcam Viewer,TouchDesigner, ZoneMinder, Motion Eye OS, Yawcam…
Wide aplication for Machine vision,Traffic and transport (ITS),Medical technology (and laboratory automation),Safety technology,Mechanical engineering,Surface inspection,Biotechnology and life sciences,Electronics inspection,Pharma and healthcare,Endless web inspection
Typical Application Fields:
In the industrial field: the development of metal materials and resin materials, it is used to observe the direction and state of internal cracks when materials are impacted, and to analyze the structure when materials are damaged.
In sports: baseball and golf, the state of catching the ball and the resistance caused by air.
In the printing process of packaging and label industries: very subtle printing defects in high-speed printing can be detected in real time. Finding printing defects can provide valuable information for production, so that measures can be taken in the production process to reduce the final loss. It can easily detect common defects in printing, such as scratches, dust, missing prints, ink and wrinkles. It can greatly improve the return on investment and reduces the output of waste products.
In terms of product development and product verification: the high-speed camera has no limit on the size of the subject. According to the conditions of the lens, general material and microscope photography can be used.
USB Camera with 2.8-12/5-50/6-60mm manual Varifocus lens
USB Camera without lens
USB camera with 4/6/8mm manual lens
Package
Effect
Our USB Camera include VGA 640X480,1MP,1.3MP,2MP,5MP and 8MP resolution.
