Mesin Generator Ozon 60G/H – Adjustable High Ozone Concentration, Sertifikasi CE FCC ROHS
This product has been added to 4 people'scarts.
- Delivered today (order Mon-Fri before 12:00, delivery between 17:00 and 22:00)
- Including shipping costs, sent by Rare Good Store
- Pick up at a Rare Good Store collection point is possible
- 30 days to change your mind and free returns
- Day and night customer service
Description

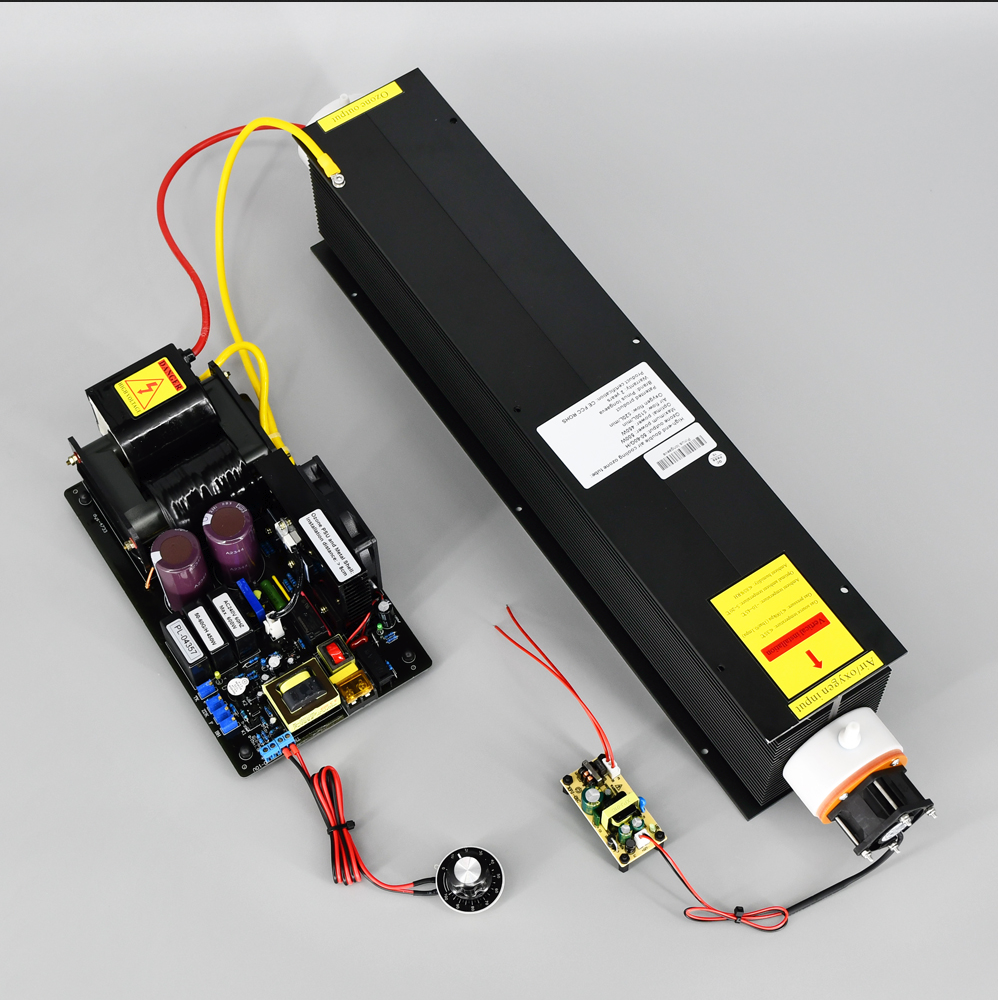

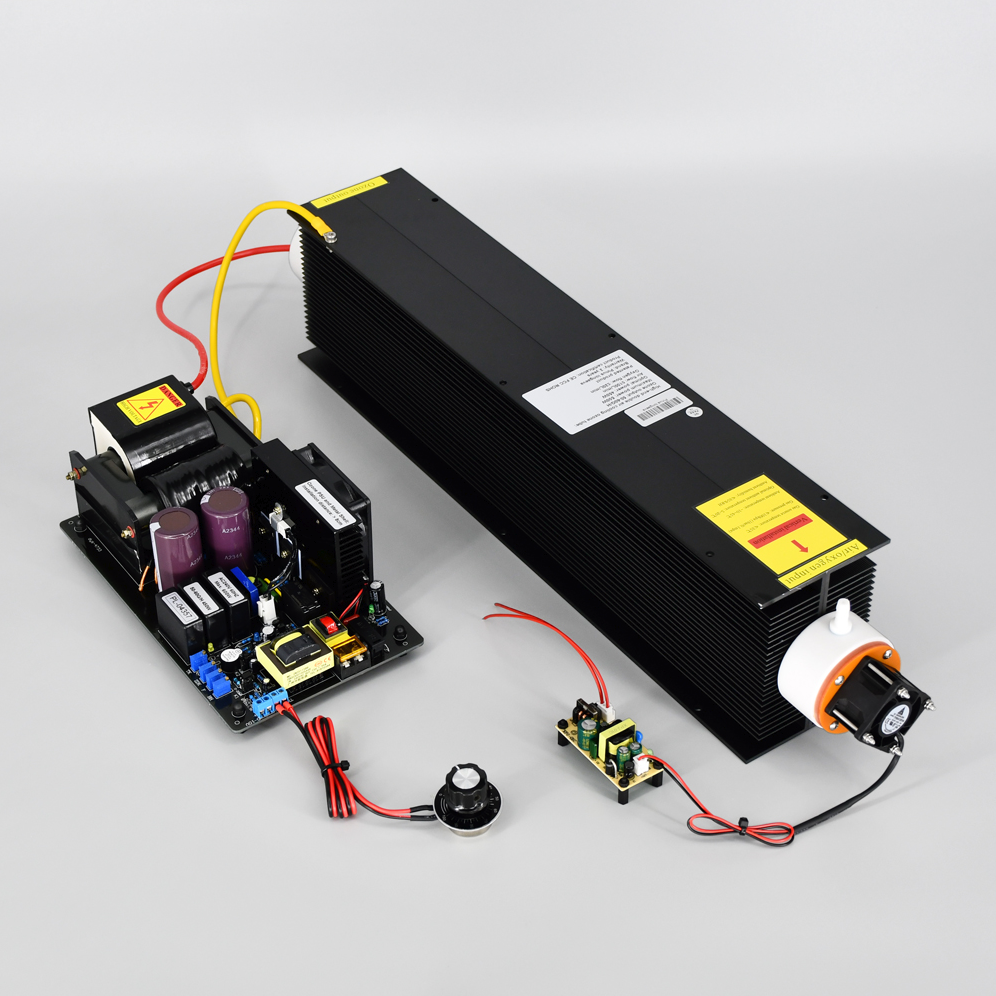

High-end air cooling ozone generator kit:
Patented product
Brand: Pinus longaeva
Product certification: CE FCC ROHS
Product application: air purification and water sterilization
Service life / Warranty: more than 20000 hours / 2 years
Customized: can be customized

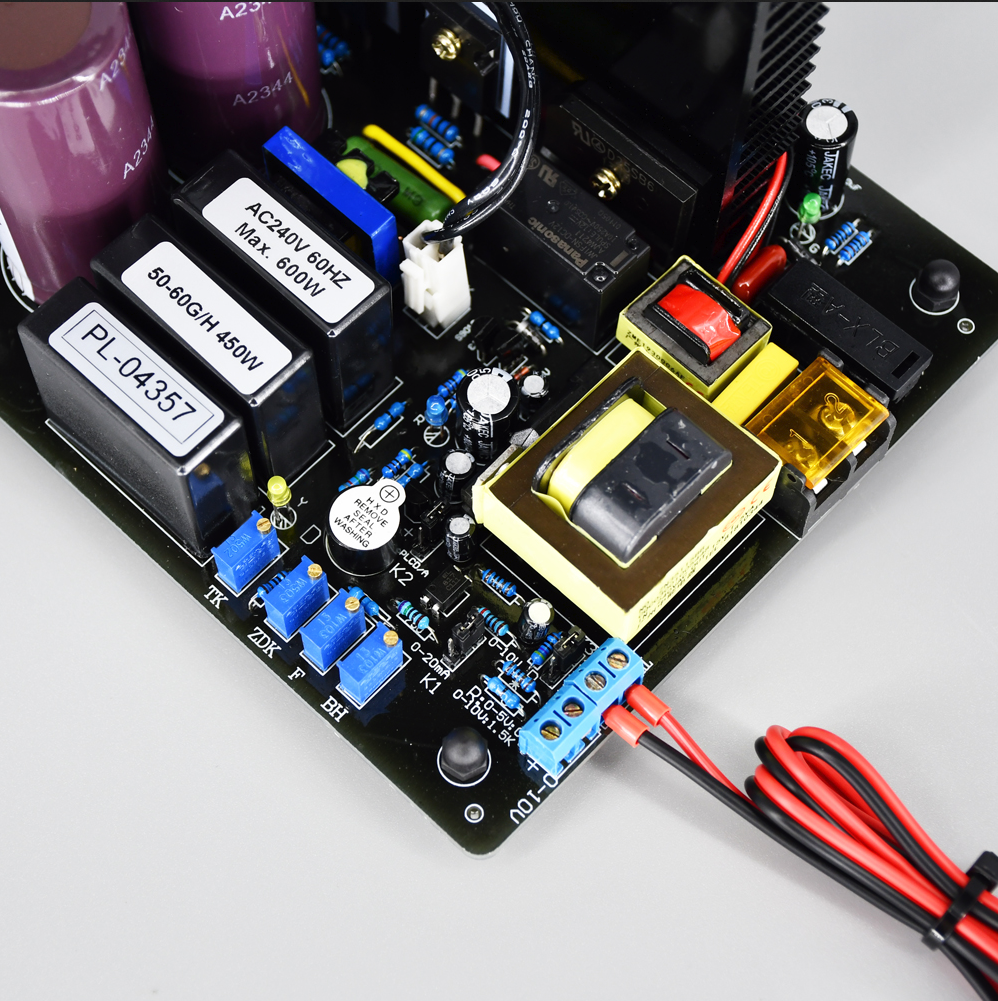

We have set the correct parameters for this ozone PSU, so please do not adjust the knob on the ozone PSU.
ZDK: set the minimum power of the ozone PSU (rotate to the right to reduce the power).
TK: set the maximum power of the ozone PSU (rotate to the right to increase the power).
F: set the output frequency (you need an oscilloscope) (rotate to the right to reduce the frequency).
BH: set the alarm power (we do not recommend that you modify it).
ph: adjust the output linearity of ozone PSU.
K1 K2 K3: switching control mode, adjustable / non adjustable / PLC 4-20mA / PLC 0-10v / PLC 0-5v (PLC 0-5v needs to replace the electronic components of the circuit board, if you need it, please order PLC 0-5v).
Indicator light:
Blue: power on indicator
Green: working indicator
Yellow: alarm indicator
Size:

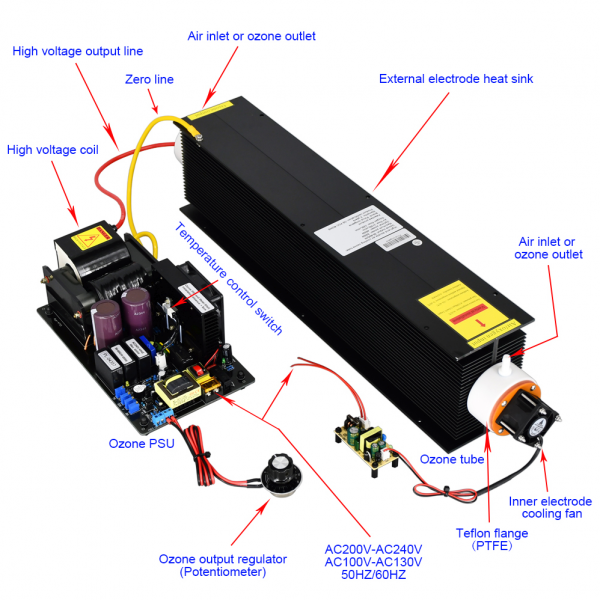

Ozone tube: 600*96*126mm 5.5kg
Ozone PSU: 254*135*85mm 1.95kg
Cooling fan:
Inner electrode cooling fan: DC12V 4cm 4028 high-speed cooling fan + 1.5A switching power supply (transformer), input voltage: AC100V-AC240V.
You can use M4 screw length 165mm to install and fix 4pcs 12cm cooling fan on the ozone tube heat sink, there are reserved mounting holes on the ozone tube, if you need the ozone tube with the cooling fan, please click here >>>
Joint:
Air / oxygen input: we recommend that you use 4*7mm silicone tube or 5*8mm PU tube.
Ozone output: we recommend that you use 6*8mm teflon tube.
If you need to change the connector, please contact us.
Product model: PL-60QBAO
Ozone output: 60g/h
Maximum power: 500w
Optimal power: 450w
Air flow: ≤100L/min
Oxygen flow: ≤20L/min
Gas source: air source, oxygen source
Gas source temperature: ≤35℃
Gas pressure: ≤100kpa (1bar/0.1mpa)
Ambient temperature: -10~45℃
Optimal ambient temperature: 1-20℃
Environmental humidity: ≤85%RH
External electrode: pure aluminum foil
Dielectric material: high-purity quartz glass tube
Inner electrode: 316L stainless steel tube
Discharge gap: 0.5mm
Additional information
| Weight | 10 kg |
|---|
